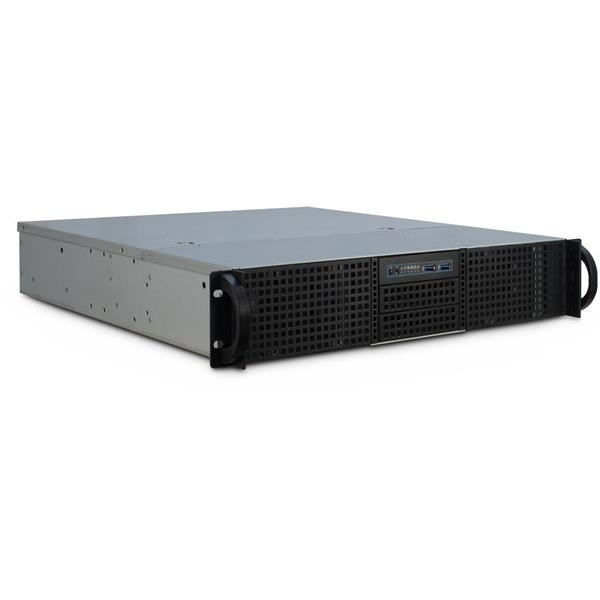

INTER-TECH case server IPC 2U-20248, rack 2U
INTER-TECH case server IPC 2U-20248, rack 2U
INTER-TECH case server IPC 2U-20248, rack 2U
MOTHERBOARD
Form factor Mini ITX, mATX, µATX, ATX
max. Motherboard size 305mm x 270mm (12" x 10.6")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 65mm
Length graphics card (max.) 270mm
DRIVE BAYS
5.25" external 4xą
5.25" external (slim)
3.5" external
3.5" internal 8xą
2.5" internal 3xą
ą can vary by using several mounting options
FRONT CONNECTORS
USB 3.0 2x
USB 2.0
POWER SUPPLY
2U Server PSU
FAN MOUNTING OPTION
Inside 2x 80mm (serial, 3pin (4pin connector))
CONTROLS & LED
Controls Power-Switch
Reset-Button
LED Power
HDD Activity
3x Network Activity
Alert
OTHER DATA
Dimensions (h/w/d) 89 x 482 x 518mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery
Case
Retail packaging
Screw Set
Mounting bracket for 2U PSU
Mounting rails for 3.5" hard drives
Features
2x 80mm fan included
USB 3.0 as block connector
7x Low Profile slot with screwed and perforated slot brackets
LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 27 Pcs
Weight net = 8.04kgs
gross = 10.08kgs
Item number 88887104
EAN-Code 4260133126251
Form factor Mini ITX, mATX, µATX, ATX
max. Motherboard size 305mm x 270mm (12" x 10.6")
INSTALLATION DIMENSIONS
Height CPU cooler (max.) 65mm
Length graphics card (max.) 270mm
DRIVE BAYS
5.25" external 4xą
5.25" external (slim)
3.5" external
3.5" internal 8xą
2.5" internal 3xą
ą can vary by using several mounting options
FRONT CONNECTORS
USB 3.0 2x
USB 2.0
POWER SUPPLY
2U Server PSU
FAN MOUNTING OPTION
Inside 2x 80mm (serial, 3pin (4pin connector))
CONTROLS & LED
Controls Power-Switch
Reset-Button
LED Power
HDD Activity
3x Network Activity
Alert
OTHER DATA
Dimensions (h/w/d) 89 x 482 x 518mm
Material 1.0-1.2mm Steel
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery
Case
Retail packaging
Screw Set
Mounting bracket for 2U PSU
Mounting rails for 3.5" hard drives
Features
2x 80mm fan included
USB 3.0 as block connector
7x Low Profile slot with screwed and perforated slot brackets
LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 27 Pcs
Weight net = 8.04kgs
gross = 10.08kgs
Item number 88887104
EAN-Code 4260133126251
Parametre
| Hmotnosť | 9,26 kg |
|---|
Doplňujúce informácie
| Počet rack pozícií | 2U |
|---|---|
| Prevedenie | Rack |
| ZARUKA_B2C | 24 mesiacov |
| ZARUKA_B2B | 24 mesiacov |
