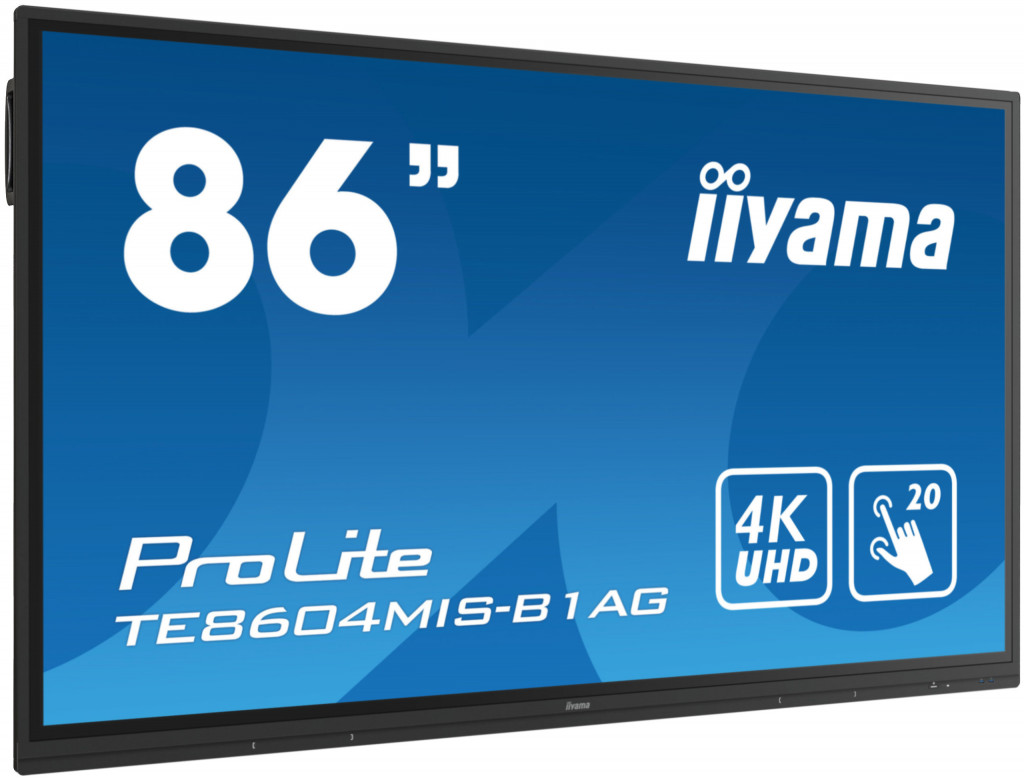

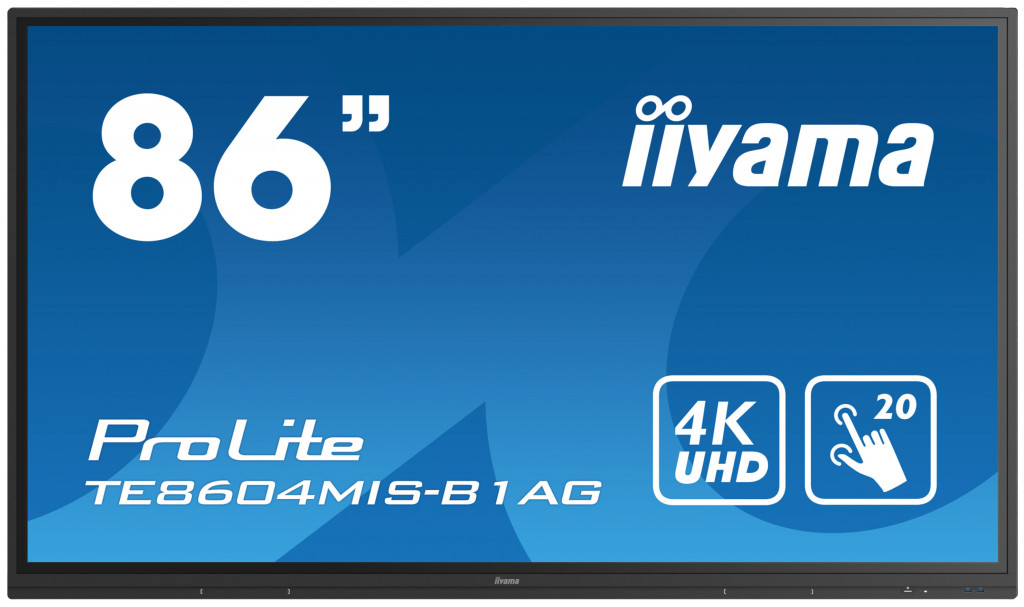

86" iiyama TE8604MIS-B1AG: IPS, 4K, 350cd/m2, 24/7, iiWare, WiFi, 4x Touch Pen, HDMI, USB-C, 20P TE8604MIS-B1AG

86’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software

Share Your Vision with the ProLite TE8604MIS-B1AG; a perfect solution for educational and corporate use. Its 86’’ PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.

The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840x2160), 350cd/m2 and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.

PARAMETRY DISPLEJE

Design: tenký rámeček
Úhlopříčka: 86", 217.4 cm
Panel: IPS LED, AG coated glass, zero air-gap
Nativiní rozlišení: 3840 x 2160 (8.3 Megapixel 4K UHD)
Poměr stran: 16:9
Jas: 350 cd/m2
Statický kontrast: 1200:1
Dynamický kontrast: 3500:1
Propustnost světla: 88%
Doba odezvy: 8ms
Pozorovací úhly: 178°/178°
Rozsah barev: 1.07 miliard 8bit+FRC
Horizontální synch.: 30-80KHz
Rozteč bodů.: 0.4935 mm
Barva: matná černá

DOTYK

Technologie doteku: PureTouch-IR
Body doteku: 20
Metoda doteku: stylus, prst, rukavice
Rozhraní doteku: USB

KONEKTIVITA

Analogové vstupní porty:
*1x VGA (max. 1920x1080 @60Hz)
Digitální vstupní porty:
*3x HDMI 2.0 (max. 3840x2160 @60Hz)
*1x USB 3.1 Type-C (max. 3840x2160 @60Hz) + 65W PowerDelivery
Řídící vstup monitoru:
*1x RS-232c
*1x RJ-45
Audio In:
*1x Mini jack
Audio Out:
*1x S/PDIF
*1x Mini Jack
Ostatní porty: USB Hub (4x USB 3.0, 1x USB 3.1 Type-C)
HDCP ANO

FUNKCE

Integrovaný software: iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows/iOS/Android devices
Hardware: Quad core A73 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory
WiFi: ANO (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
Mód kiosku: ANO
Maximální provozní doba: 24/7
Média Playback: ANO
Tloušťka skla: 3 mm
Tvrdost skla: 7H
Materiál rámečků: hliník
OSD Key Lock: ANO
Zvláštní funkce: Ambient light sensor, OTA firmware update

MECHANICKÉ INFORMACE

Orientace: horizontální
VESA: 800 x 600 mm

OBSAH BALENÍ

Kabely: napájecí kabel, USB, HDMI, USB-C
Příručky: průvodce rychlým spuštěním, bezpečnostní průvodce
Další: 4x Touch Pen, dálkové ovládání (včetně baterií), Mounting bracket for NUC, Mounting bracket for webcam

NAPÁJENÍ

Napájecí adaptér: interní
Zdroj: AC AC - 100V, 240/V, 50Hz/60Hz
Odběr energie: 390W (0,5W Stand By/Off Mode)

UDRŽITELNOST

Normy: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS, PFOS, PFC)
Energetická třída: neuvedeno
Další: REACH SVHC above 0.1%: Lead

ROZMĚRY A HMOTNOST

Rozměry (ŠxVxH): 1957 x 1159 x 86 mm
Hmotnost: 64,4 kg
EAN: 4948570118441

Stránky výrobce: https://iiyama.com/gl_en/products/prolite-te8604mis-b1ag/
